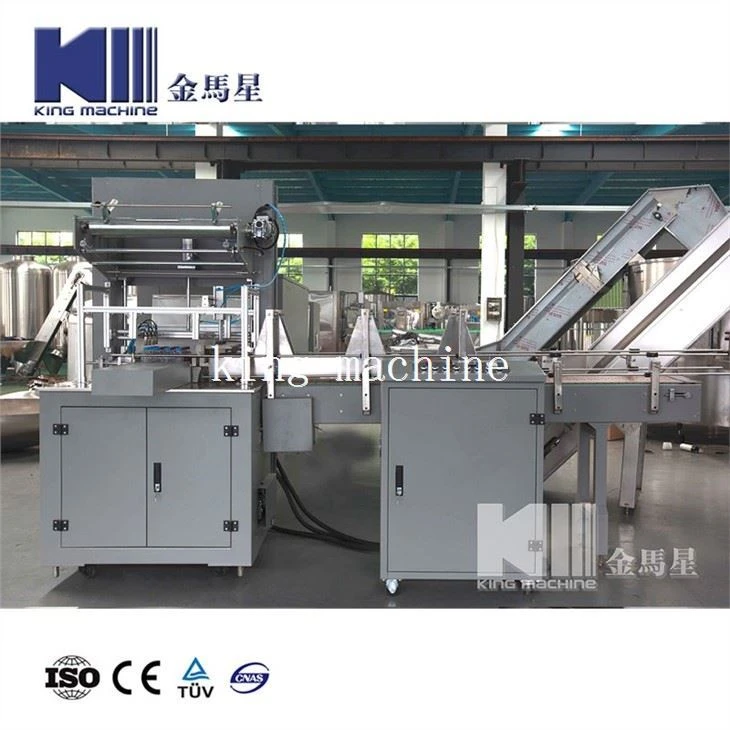

Fuldautomatisk PE film krympeindpakningsmaskine vandflaske krympepakkemaskine

Fuldautomatisk PE film krympeindpakningsmaskine vandflaske krympepakkemaskine

Maskinen er udviklet specielt til mineralvand, drikkevin, øl, produkt og snart infusionsmedicinflaske kombinationsemballage, med stabil funktion, og de pakkede artikler stramt og velordnet. Den kan håndteres som en enkelt skubbemaskine, når høj hastighed kræves.

Send forespørgsel

Produkt introduktion

Fuldautomatisk PE film krympeindpakningsmaskine vandflaske krympepakkemaskine

Sammenfatte:
KM is suitable for wrapping products such as pop-cans, bottles, etc, with bottom-tray or without bottom-tray,
working with KM-tunnel or other PE shrink tunnels.
Egenskab:
· The Machine adopts the advanced touch screen system for man-machine conversation, 'Schneider' programmable logic controller (PLC), 'AirTAC' air-jar, and all the rest parts adopt international famous brand.
· Up and down magnetic switch prevent sealing mistakes, and protect the operators.
· 'Schneider' PLC, 'Schneider' AC contractor, and Intelligent temperature controller performs stable.
· Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.
· Up and down large power fan system ensures the excellent effect of shrinking in one time.
· Super cooling system cools the packing and makes the figuration perfectly.
Specifikation

Model	KM-250A	Model	KM-250B
Spænding	220V, 50-60HZ	Power supply	3phase 380V 50HZ
Strøm	3KW	Heater power	27KW Adjuster
Kapacitet	0 - 10stk/minut	Conveyer speed	0-10m/min
Working air pressure	4 - 6kg/c	Tunnel size	1800600400mm
Width/thickness of the film	Maks.590mm/0,03-0,25mm	Conveyer loading	25KGS MAX.
Max. packing dimension	500300400 mm	Maskinstørrelse (LWH	28008801570 mm
Min. packing dimension	25050100 mm	Machine weight	285 kg
Machine size(LWH)	1.0601.6001.930 mm	Shrink film	PE,POF,PVC,PP
Machine weight	400 kg	Machine weight	300 kg
